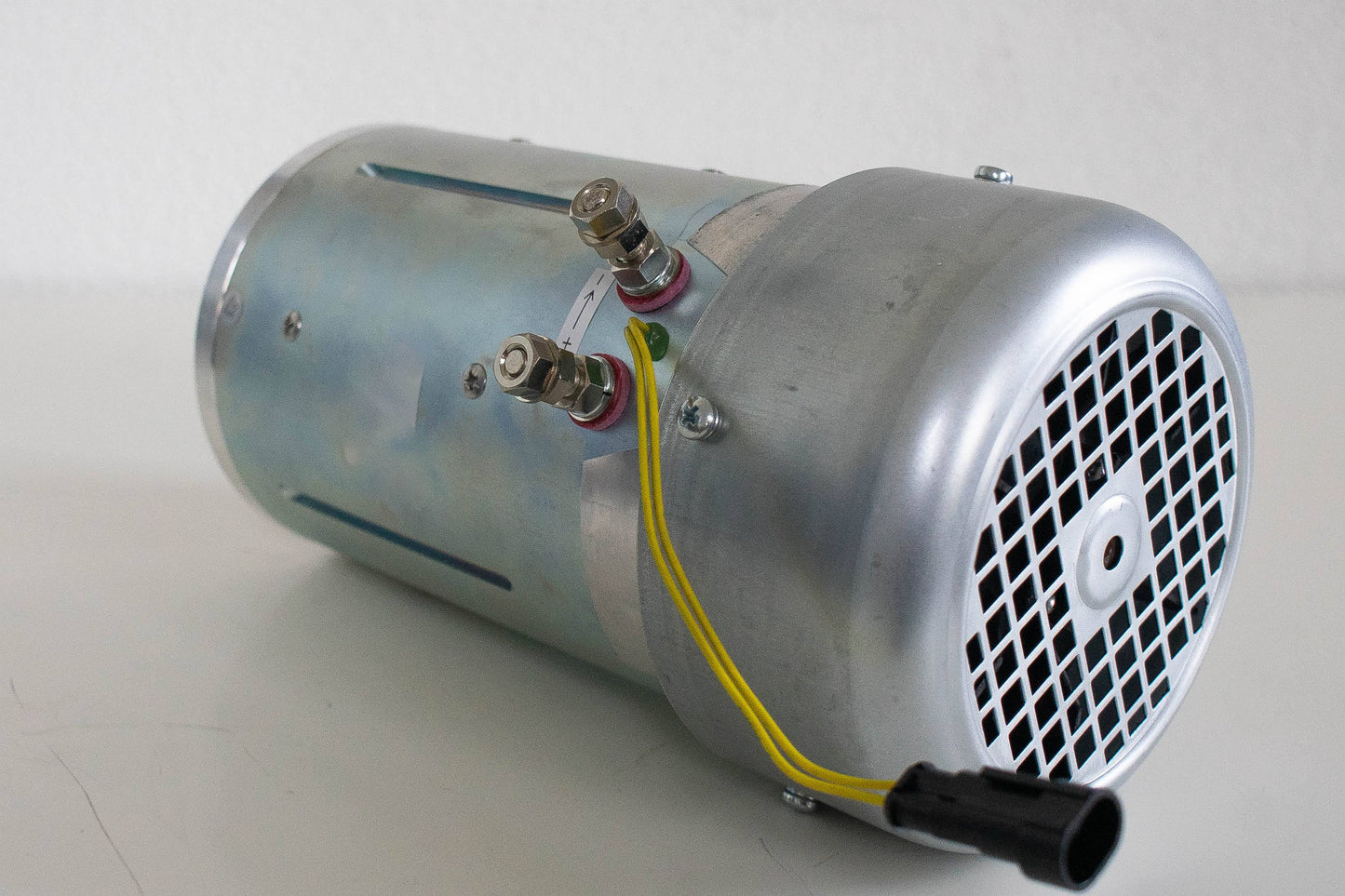

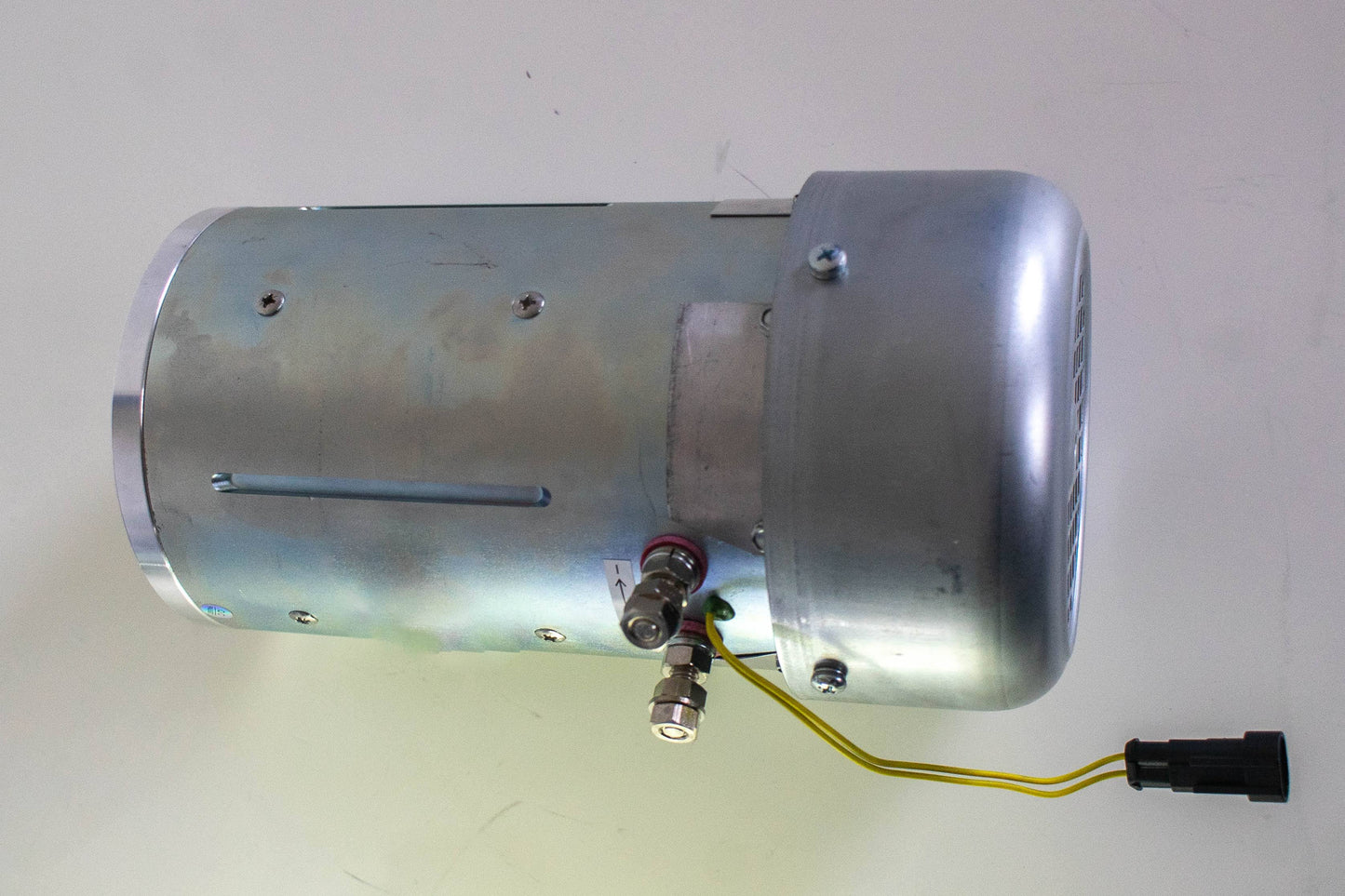

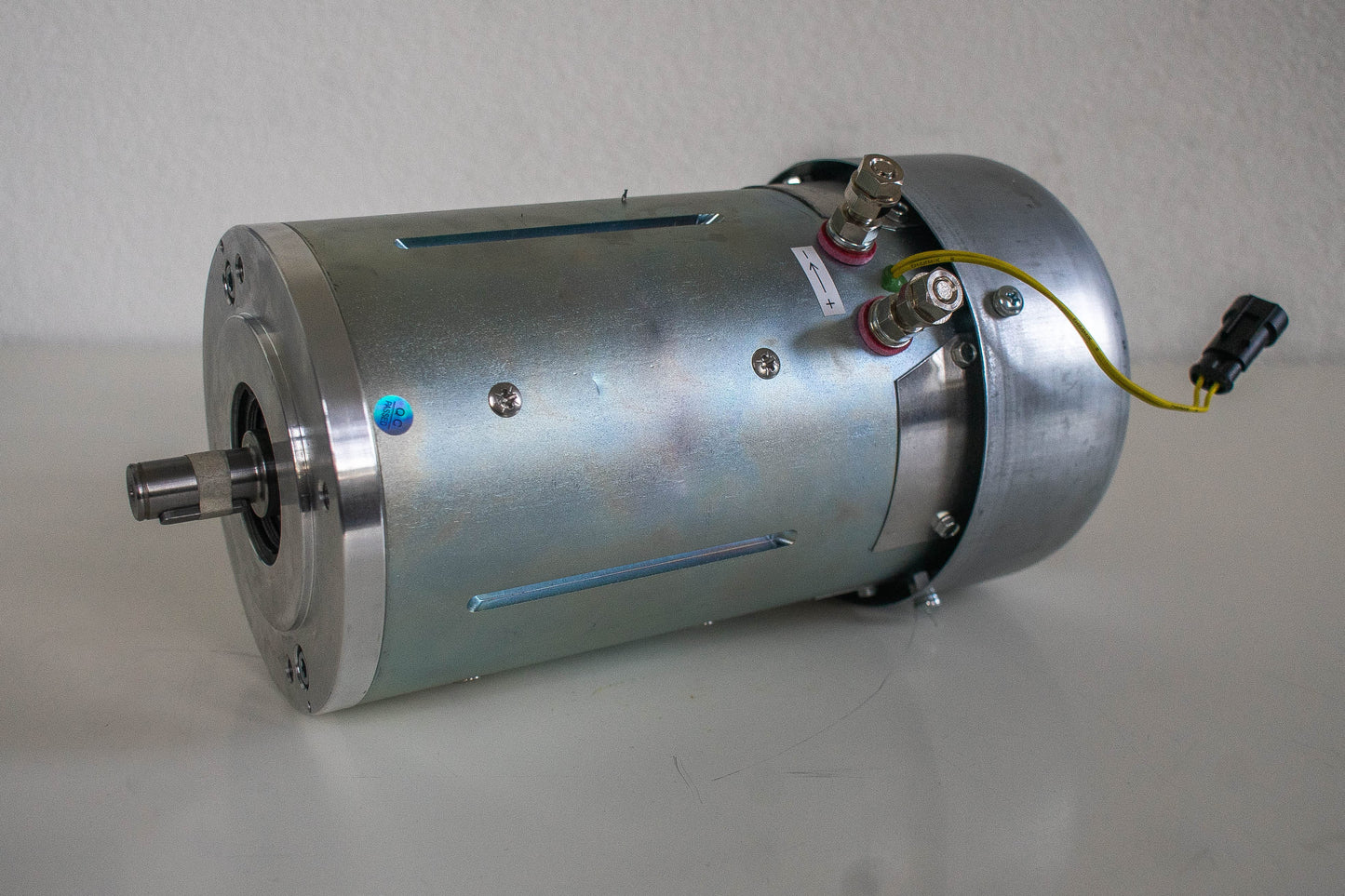

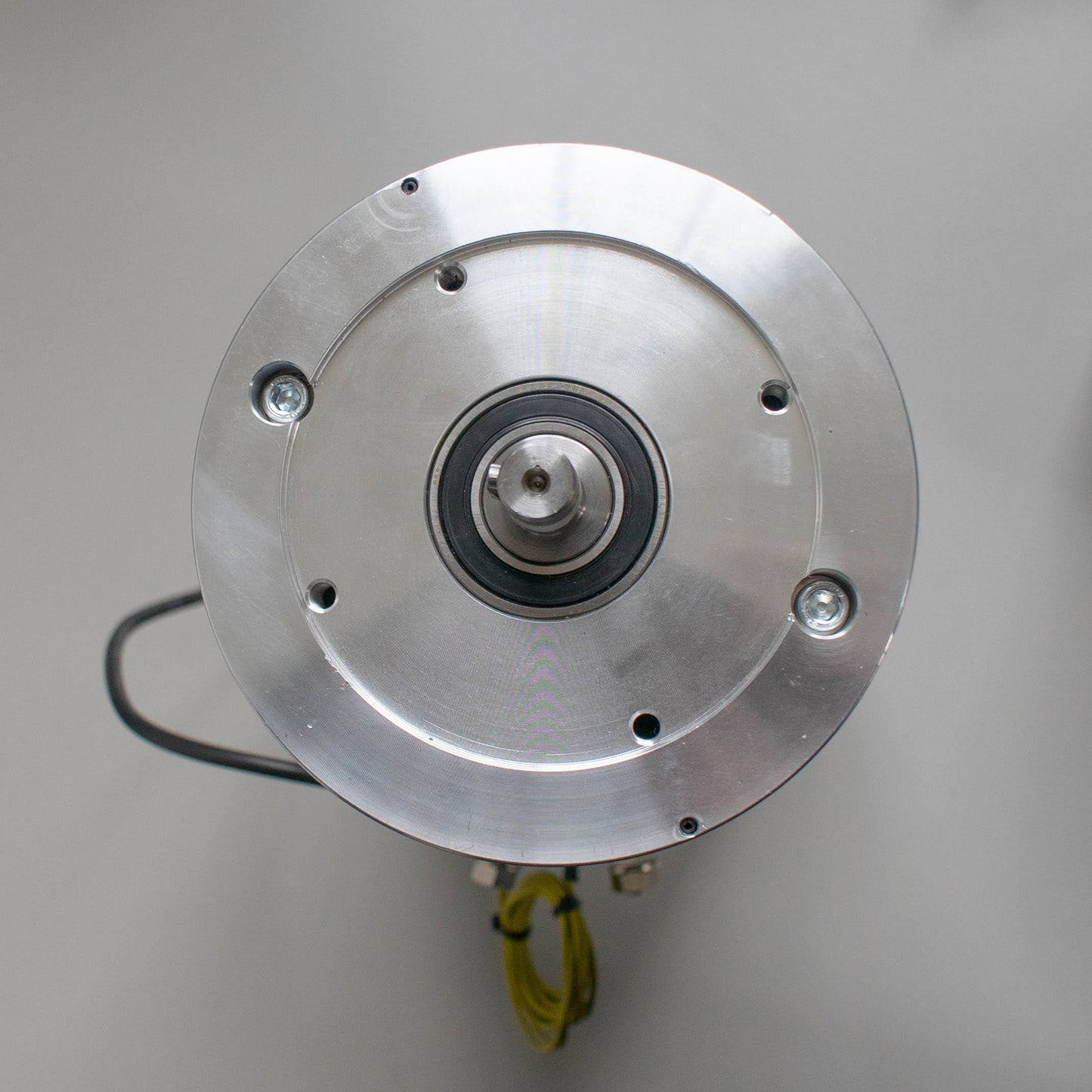

Quiet and Vibration-Free 1100W Electric Motor (1800rpm)

Introducing our versatile motor with the following technical specifications:

• Voltage: 36 Vdc
• Power: 1100 Watt
• Speed: 1800 rpm
• Building Form: IBM B14
• Length: 290 mm (without shaft)
• Cross Section: +/- Ø 144mm
• Shaft: 19X40 mm (IEC80)
• Connection: 2x M8 bolts (also possible with cables or clamp box)
• Protection Class: IP42
• Thermal Protection
• Cooling: Air-cooled
• Article Number: 36A140PMLW11-18

This motor type is also available with the following technical specifications:

• Voltage: 48-96 VDC
• Power: from 300 to 4000 Watt
• Speed: from 700 to 4000 rpm
• Building Forms: IBM B34-B14-B5-B35
• Protection Class: IP20 to IP55

The price mentioned is the price for 1 piece.

Interested? Contact us for pricing and lead time.
