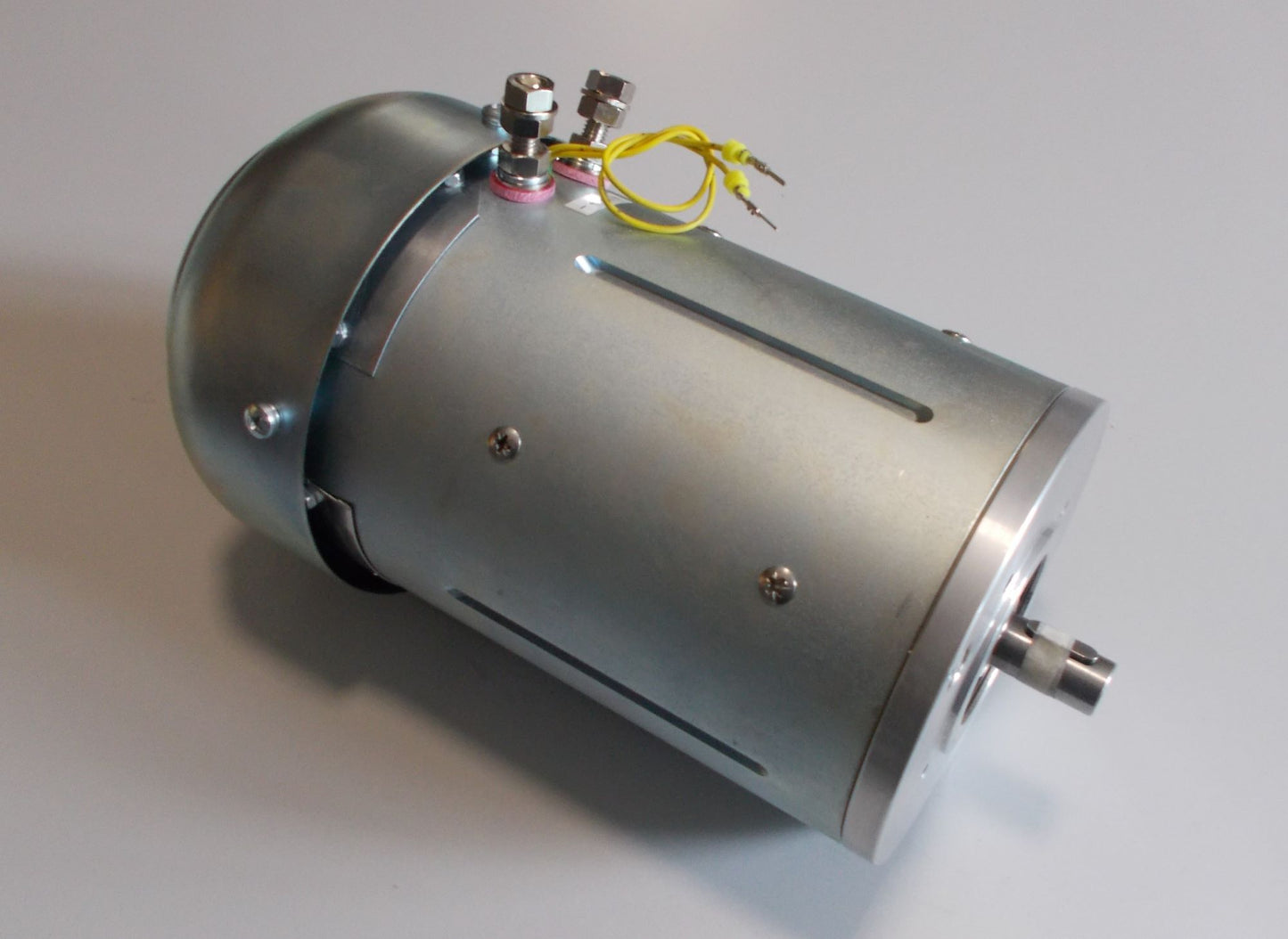

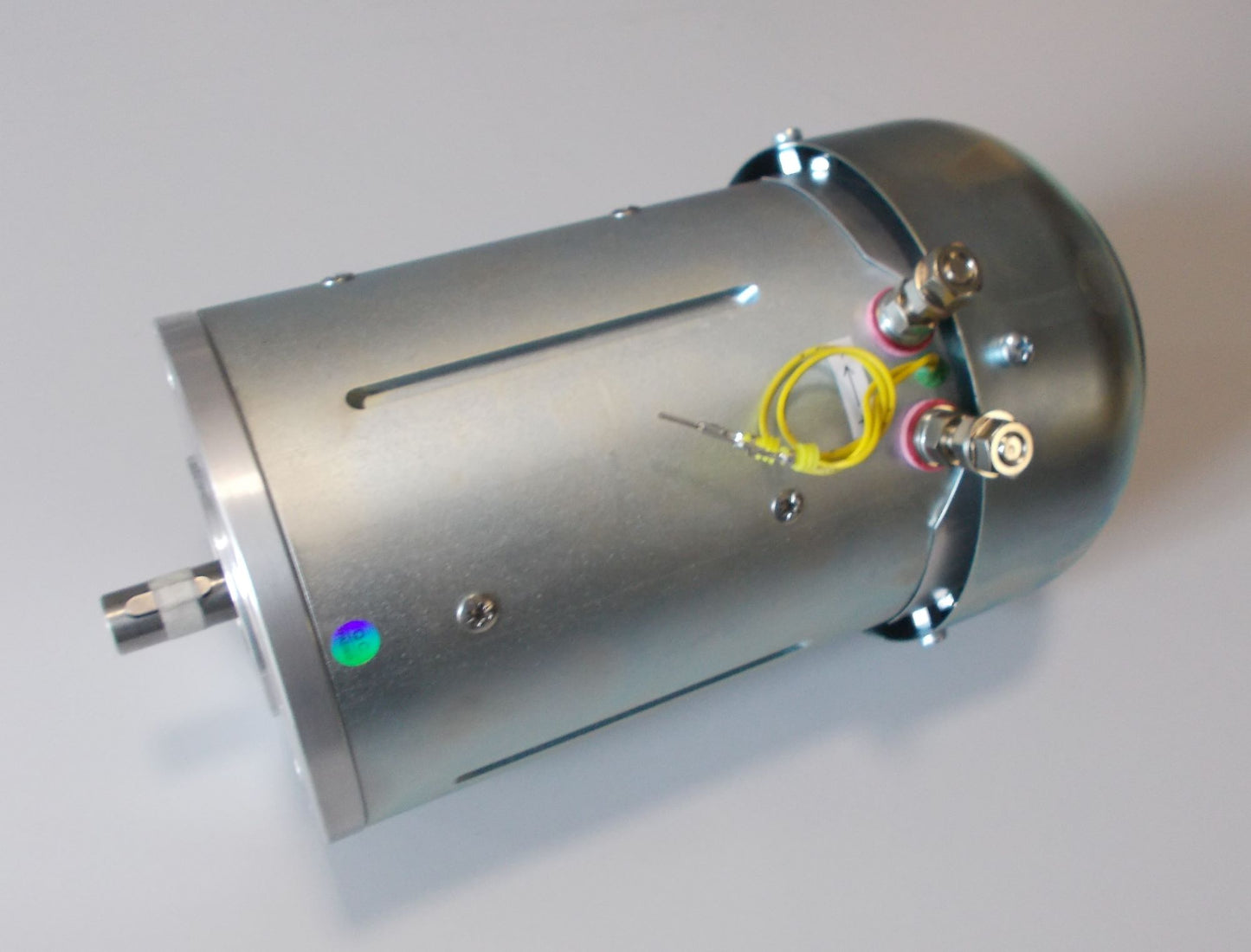

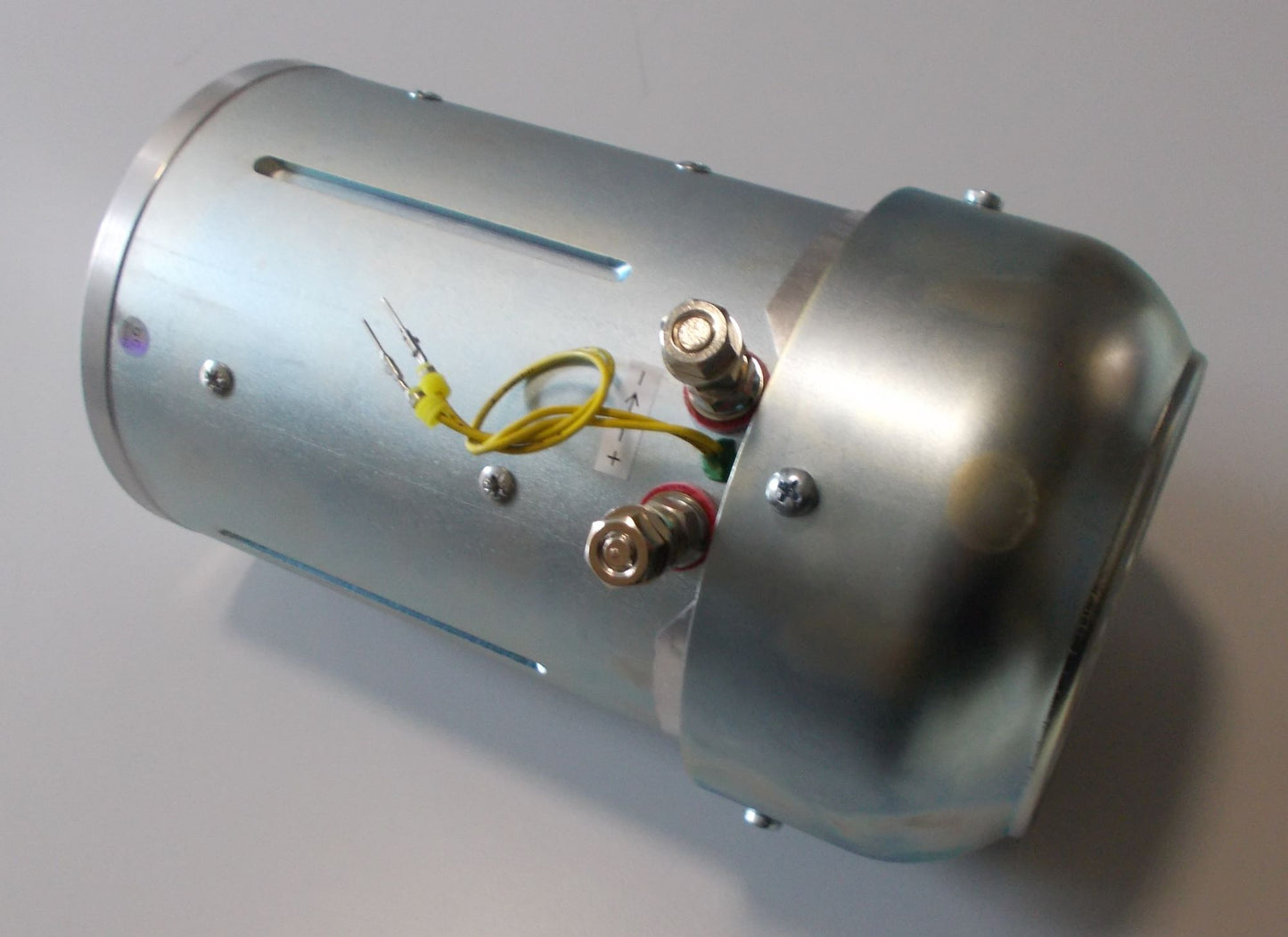

Quiet and Vibration-Free 1000W Electric Motor (2400rpm)

Introducing our versatile motor with the following technical specifications:

• Voltage: 24 VDC
• Power: 1000 Watt
• Speed: 2400 rpm
• Building Form: IBM B14
• Length: 270 mm (without shaft)
• Cross Section: +/- Ø 144mm
• Shaft: 19X40 mm (IEC80)

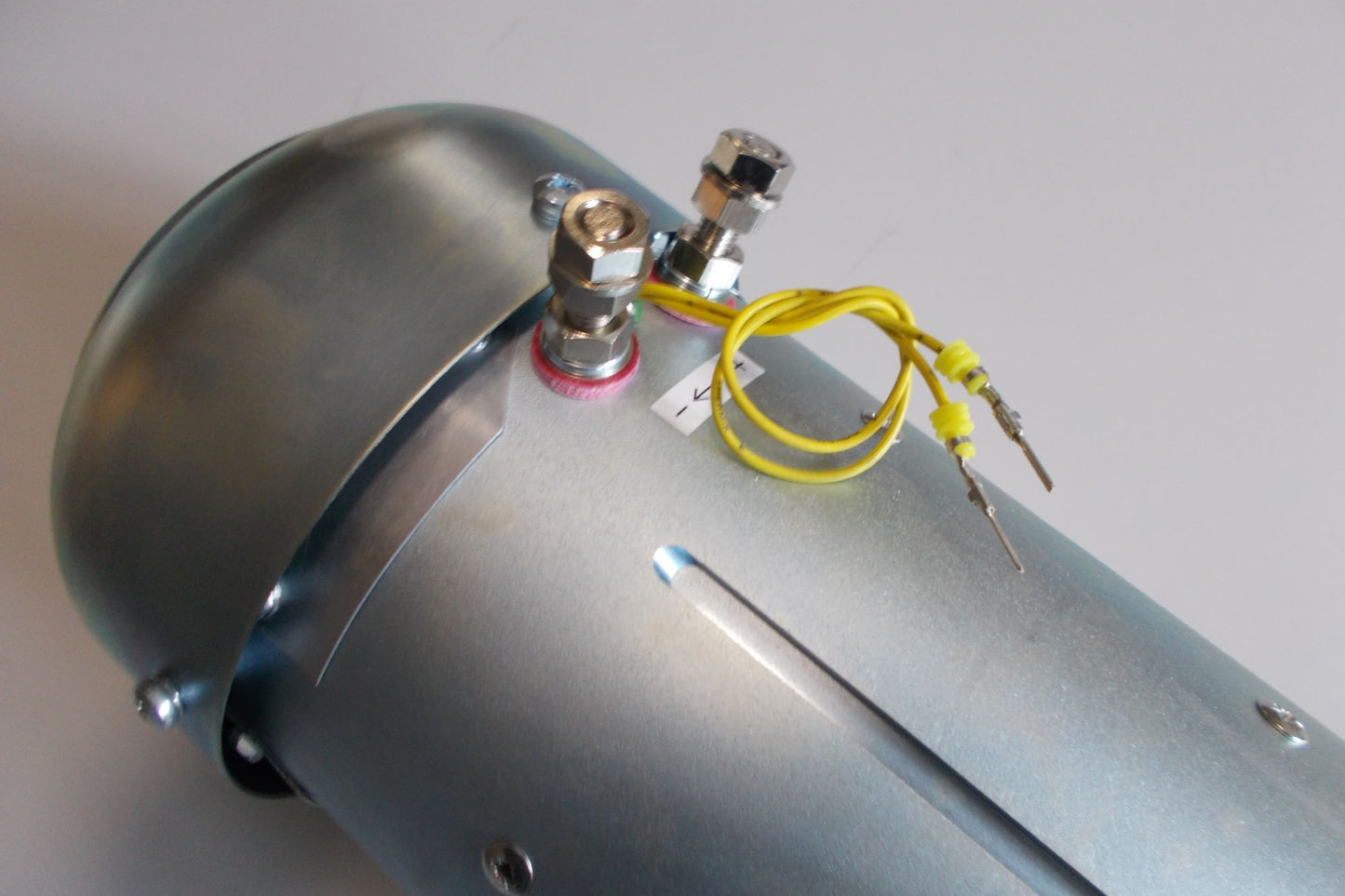

• Connection: 2x M8 bolts (also possible with cables or clamp box)
• Protection Class: IP42
• Cooling: Air-cooled
• Thermal protection
• Article Number: 24A140PMW10-24

This motor type is also available with the following technical specifications:

• Voltage: 12-24-48 VDC
• Power: from 300 to 4000 Watt
• Speed: from 700 to 4000 rpm
• Building Forms: IBM B34-B14-B5-B35
• Protection Class: IP20 to IP55

Price mentioned is the price for 1 piece.

Contact us for pricing and lead time if you're interested.
