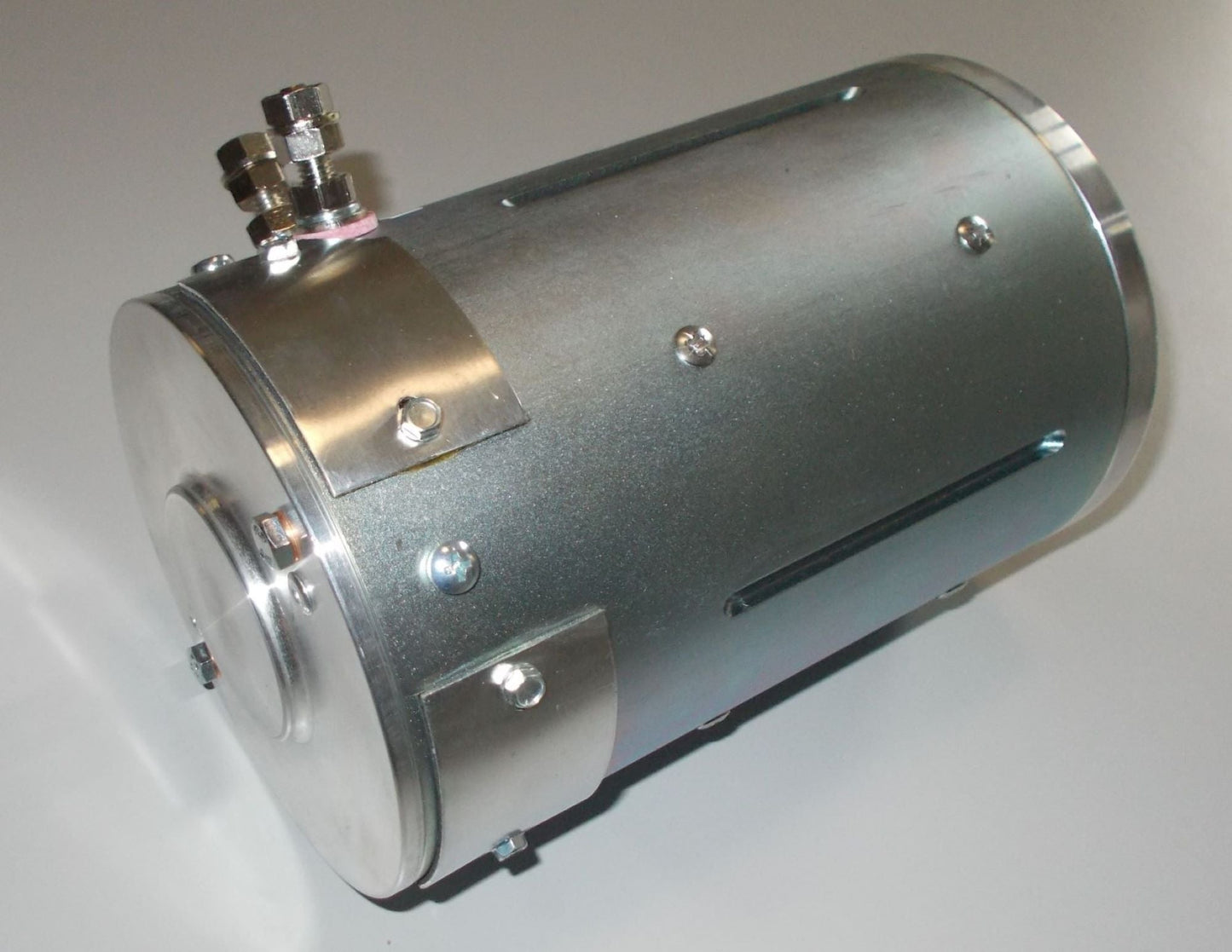

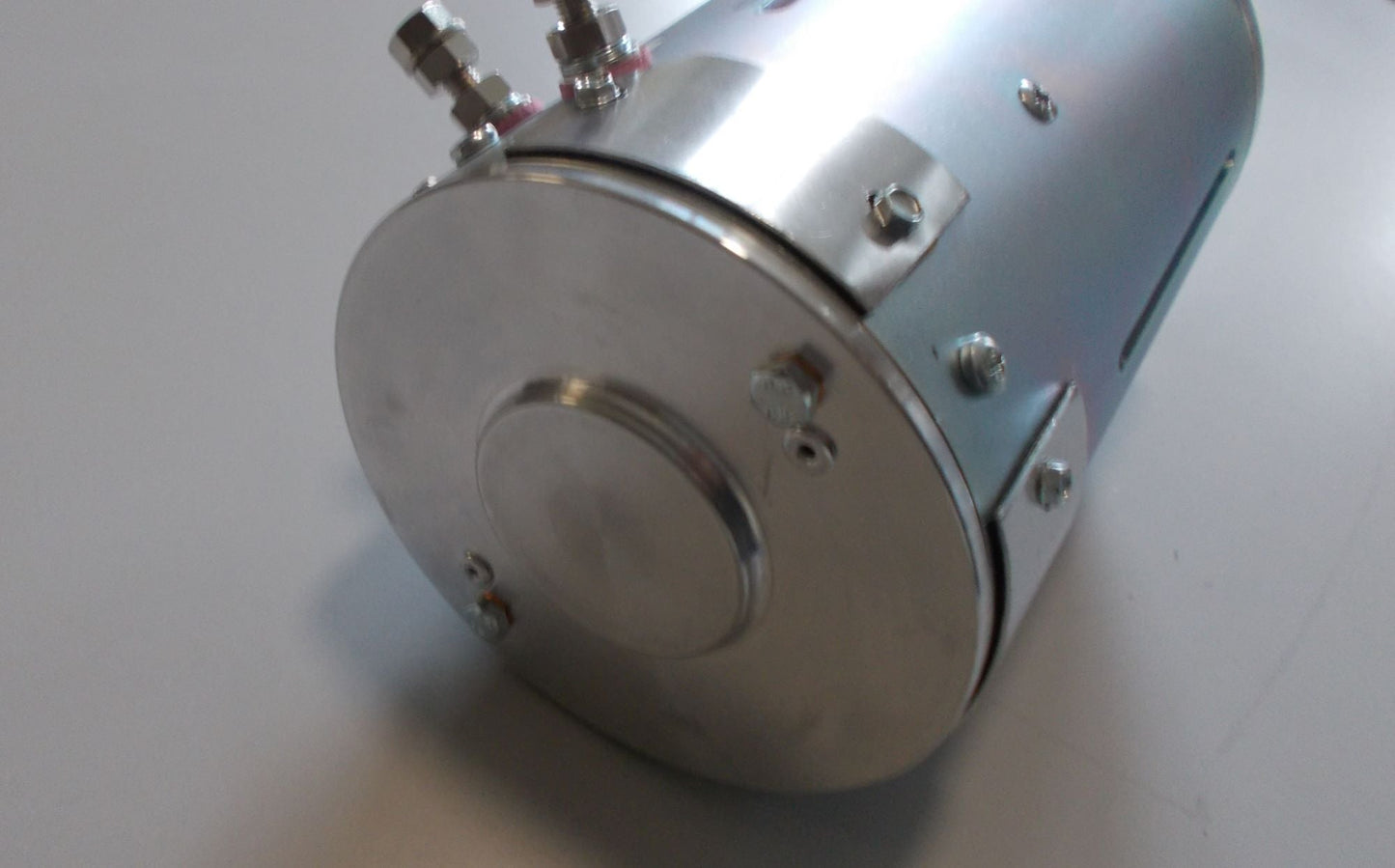

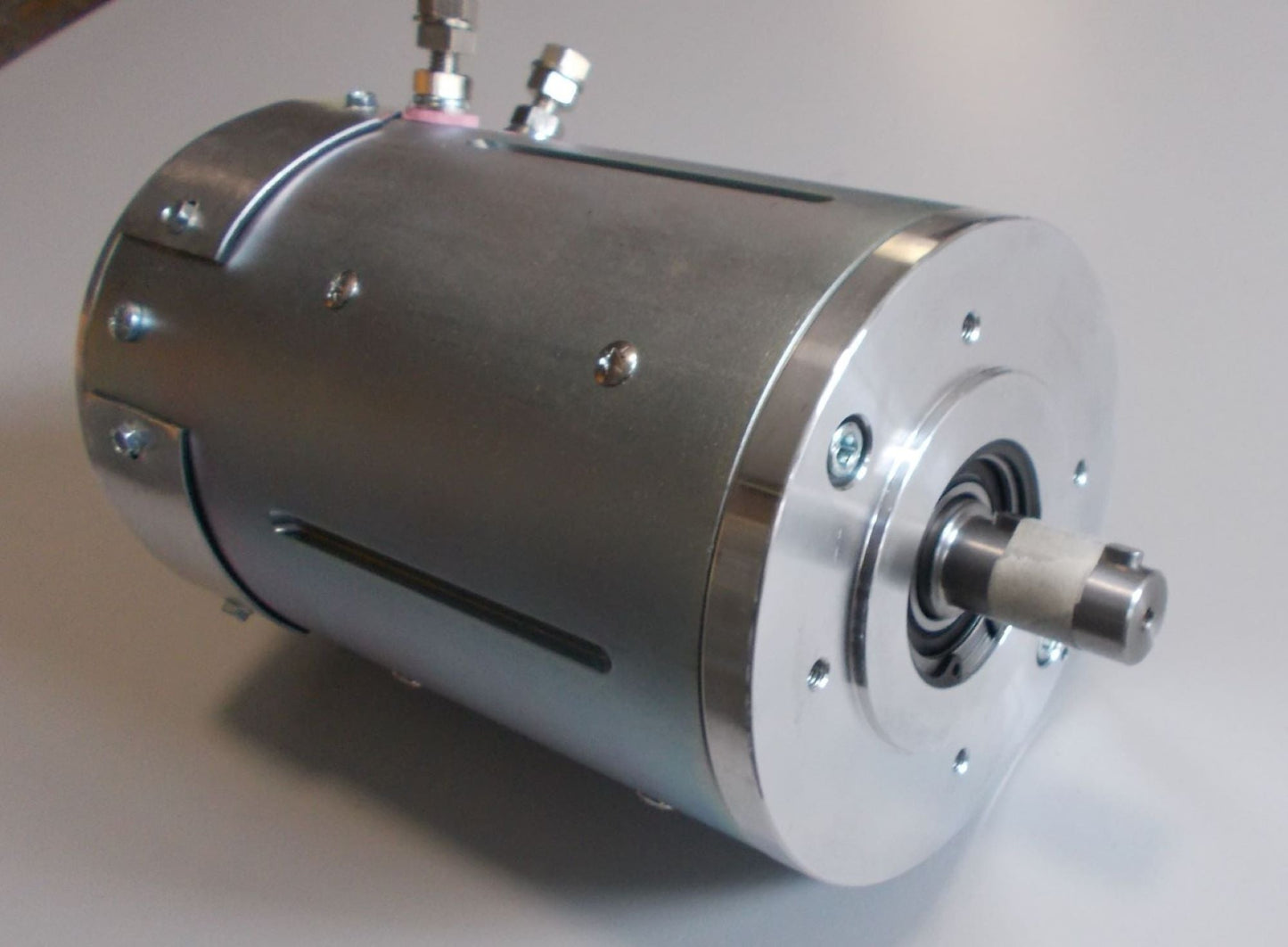

Quiet and Vibration-Free 1500W Electric Motor (3000rpm)

Introducing our versatile motor with the following technical specifications:

• Voltage: 24 Vdc
• Power: 1500 Watt
• Speed: 3000 rpm
• Building Form: IBM B14
• Length: 220 mm (without shaft)
• Cross Section: +/- Ø 144mm

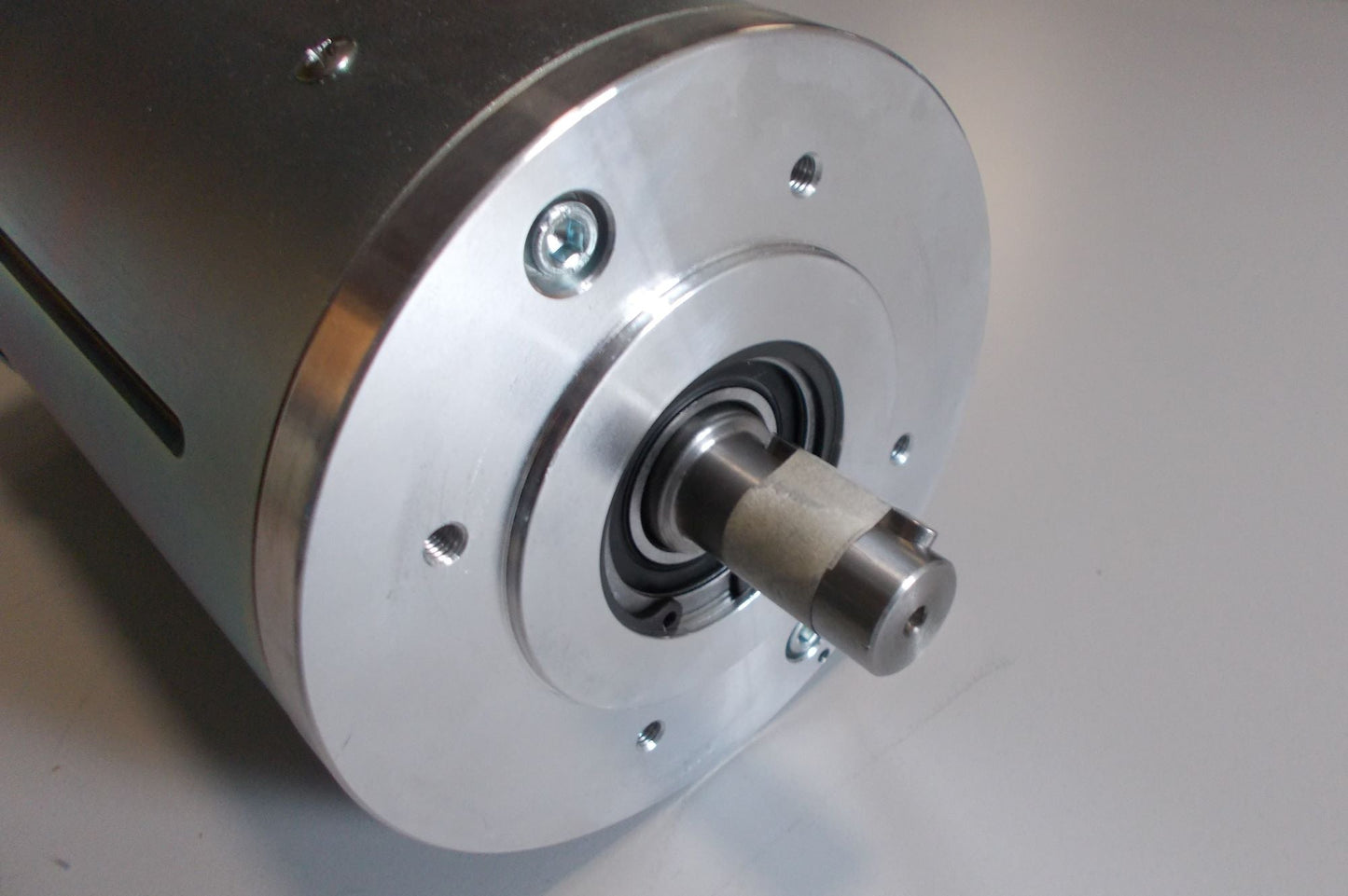

• Shaft: 19X40 mm (IEC80)
• Connection: 2x M8 bolts (also possible with cables or clamp box)
• Protection Class: IP55
• Enclosure: Totally closed
• Article Number: 24A140PM15-15

This motor type is also available with the following technical specifications:

• Voltage: 12-24-48 VDC
• Power: from 300 to 4000 Watt
• Speed: from 700 to 4000 rpm
• Building Forms: IBM B34-B14-B5-B35
• Protection Class: IP20-IP55

Price mentioned is the rpice for 1 motor.

Interested in more motors? Feel free to contact us for pricing and lead time.
