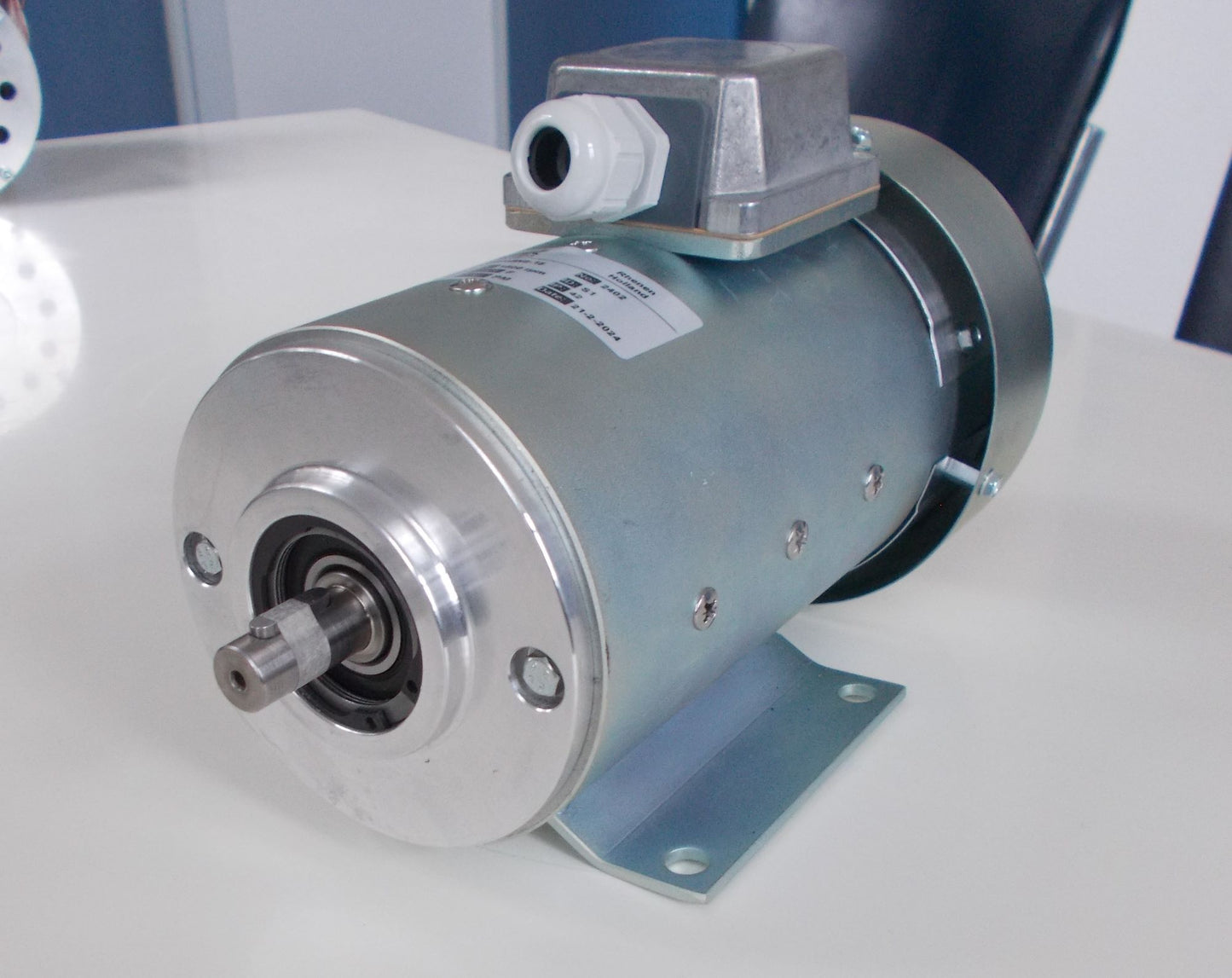

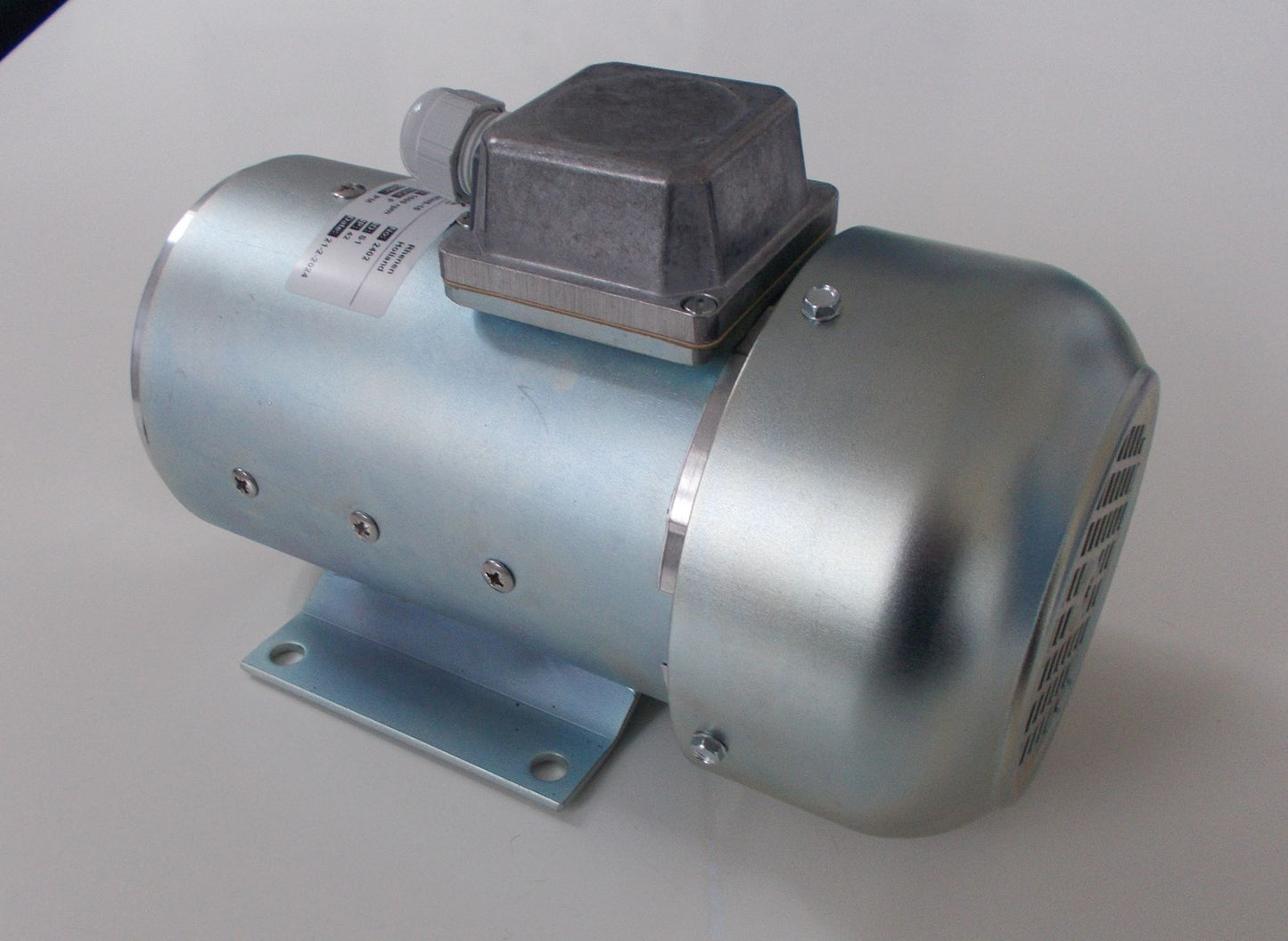

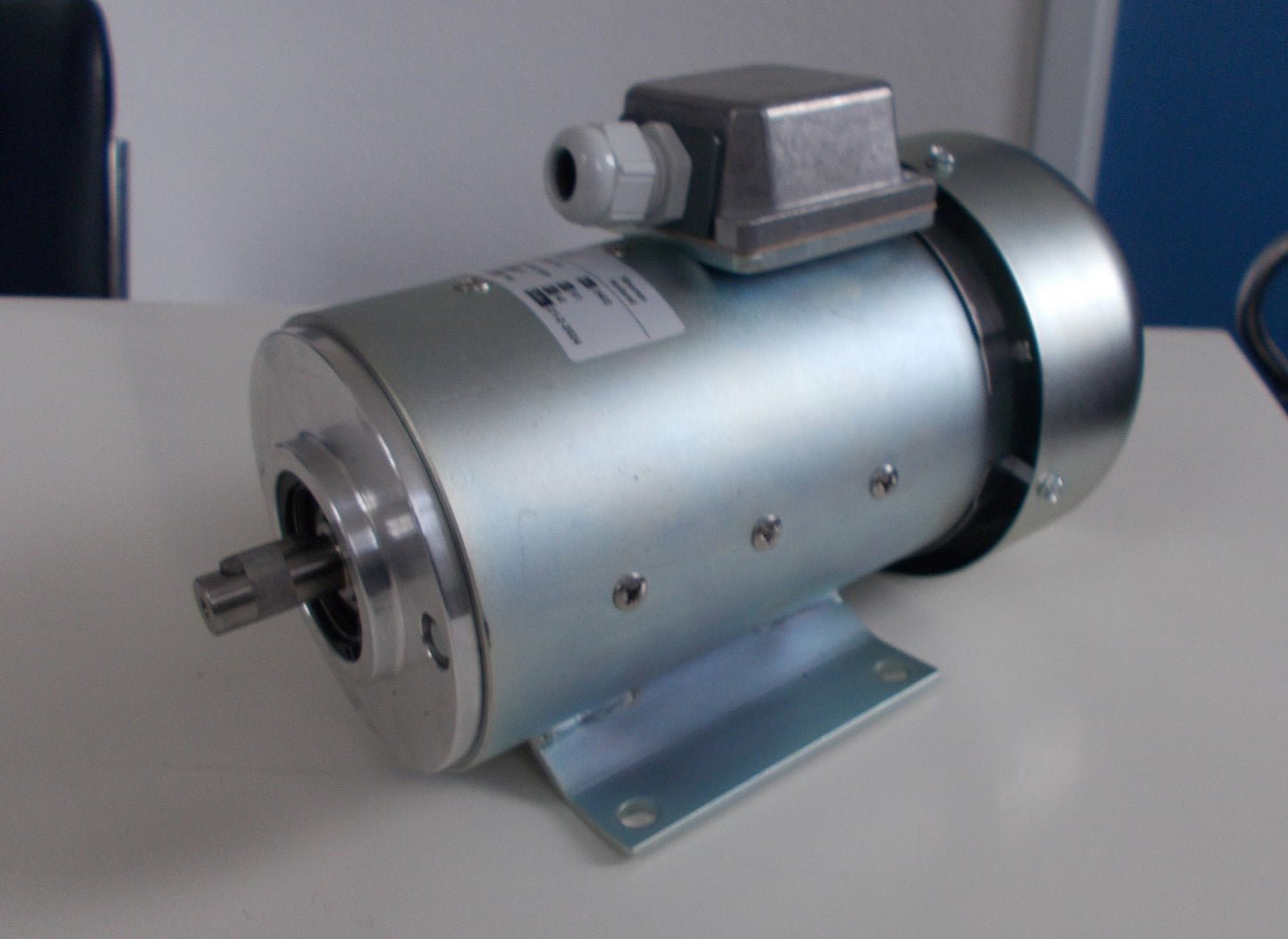

Quiet and Vibration-Free 500W Electric Motor (1500rpm)

Introducing our versatile motor with the following technical specifications:

• Voltage: 48 Vdc
• Power: 500 Watt
• Speed: 1500 rpm
• Building Form: IBM B34
• Length: +/- 250 mm (without shaft)
• Cross Section: +/- Ø 116mm
• Shaft: 14x30 mm (IEC71)
• Connection: Through clamp box (also possible with M8 bolts)
• Protection Class: IP42
• Article Number: 48A120PMW5-15

This motor type is also available with a variety of technical specifications:

• Voltage: 12-24-48-80 VDC
• Power: 120 to 700 Watt
• Speed: from 750 to 3000 rpm
• Building Forms: IBM B35-B14-B5
• Protection Class: IP22-IP55

Interested? Reach out to us for pricing and lead time.
