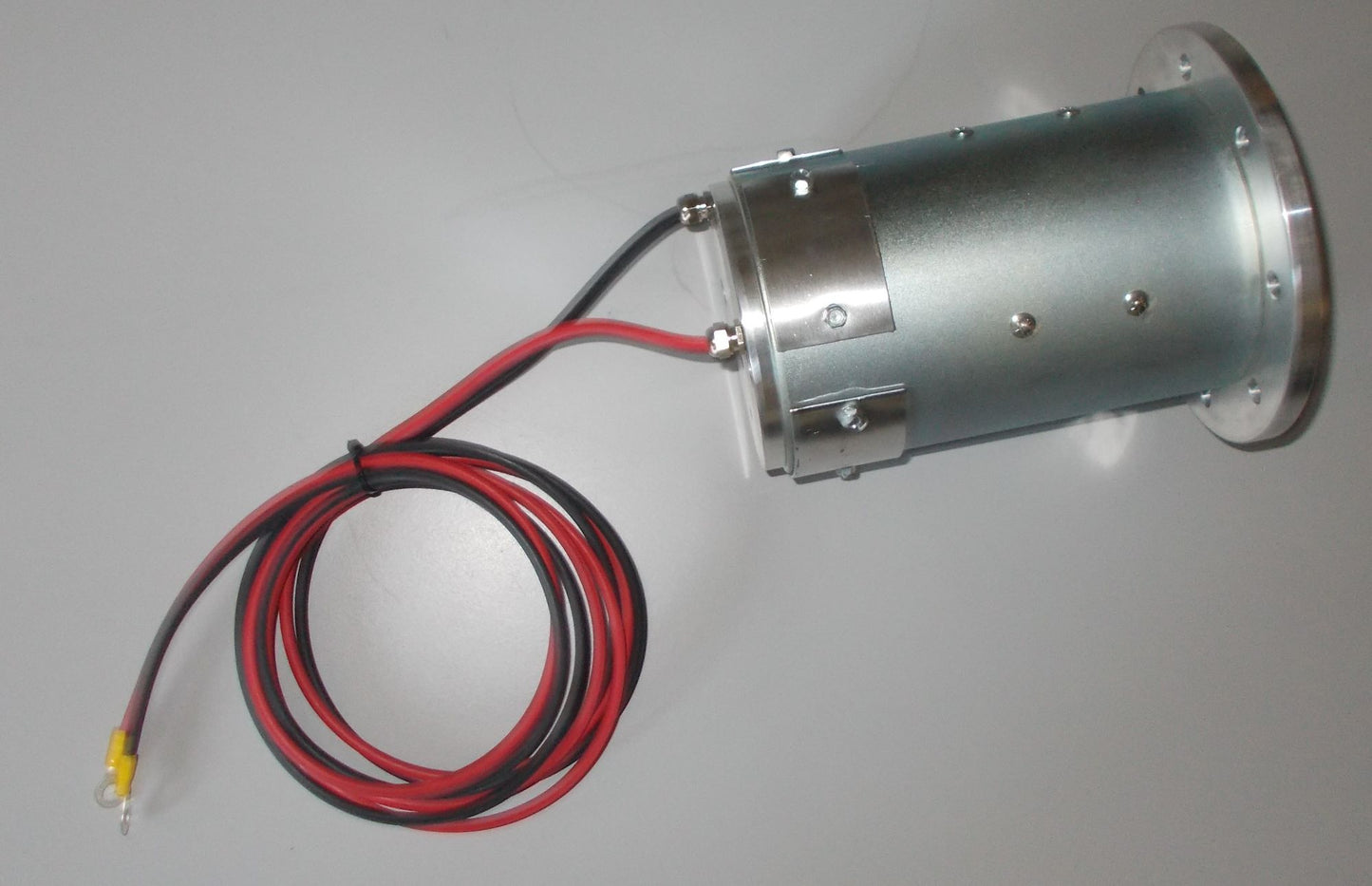

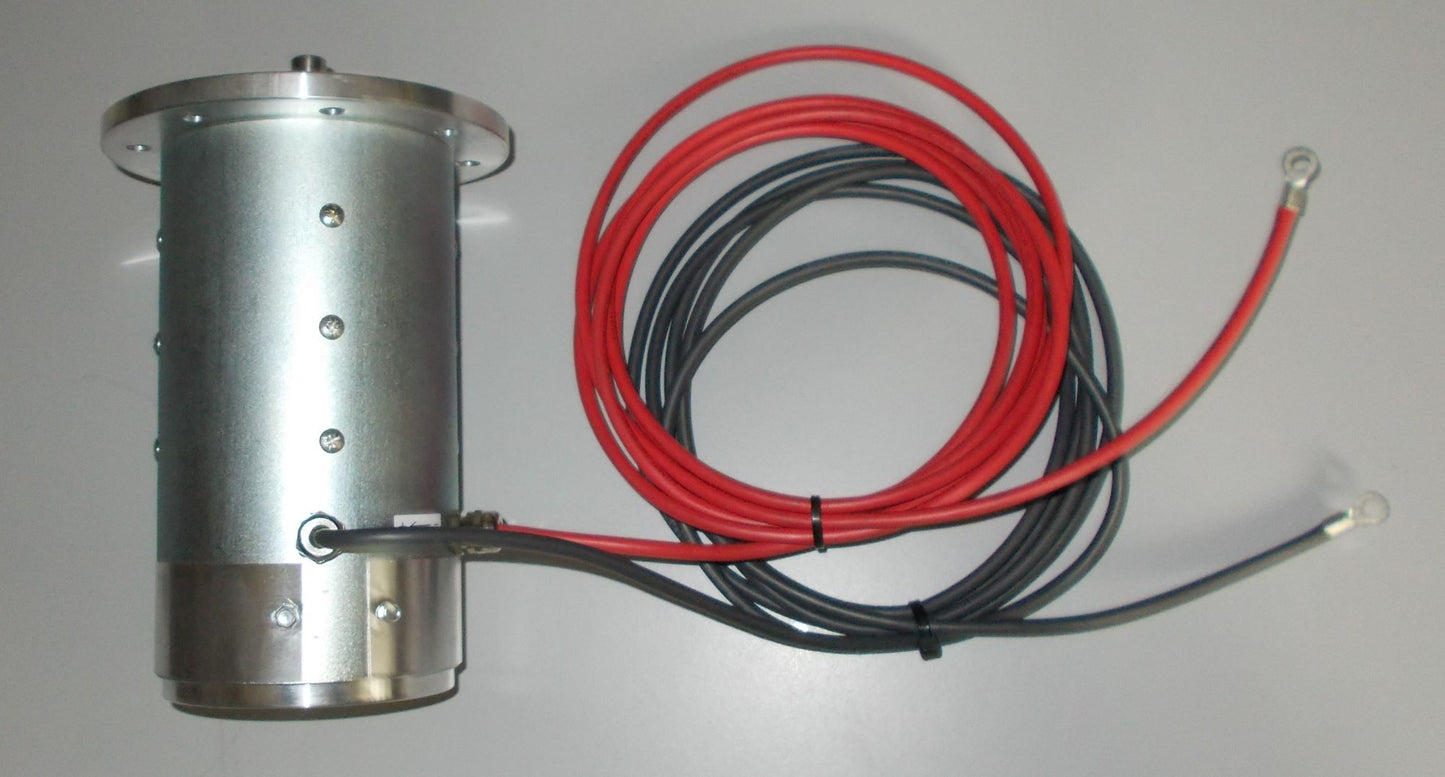

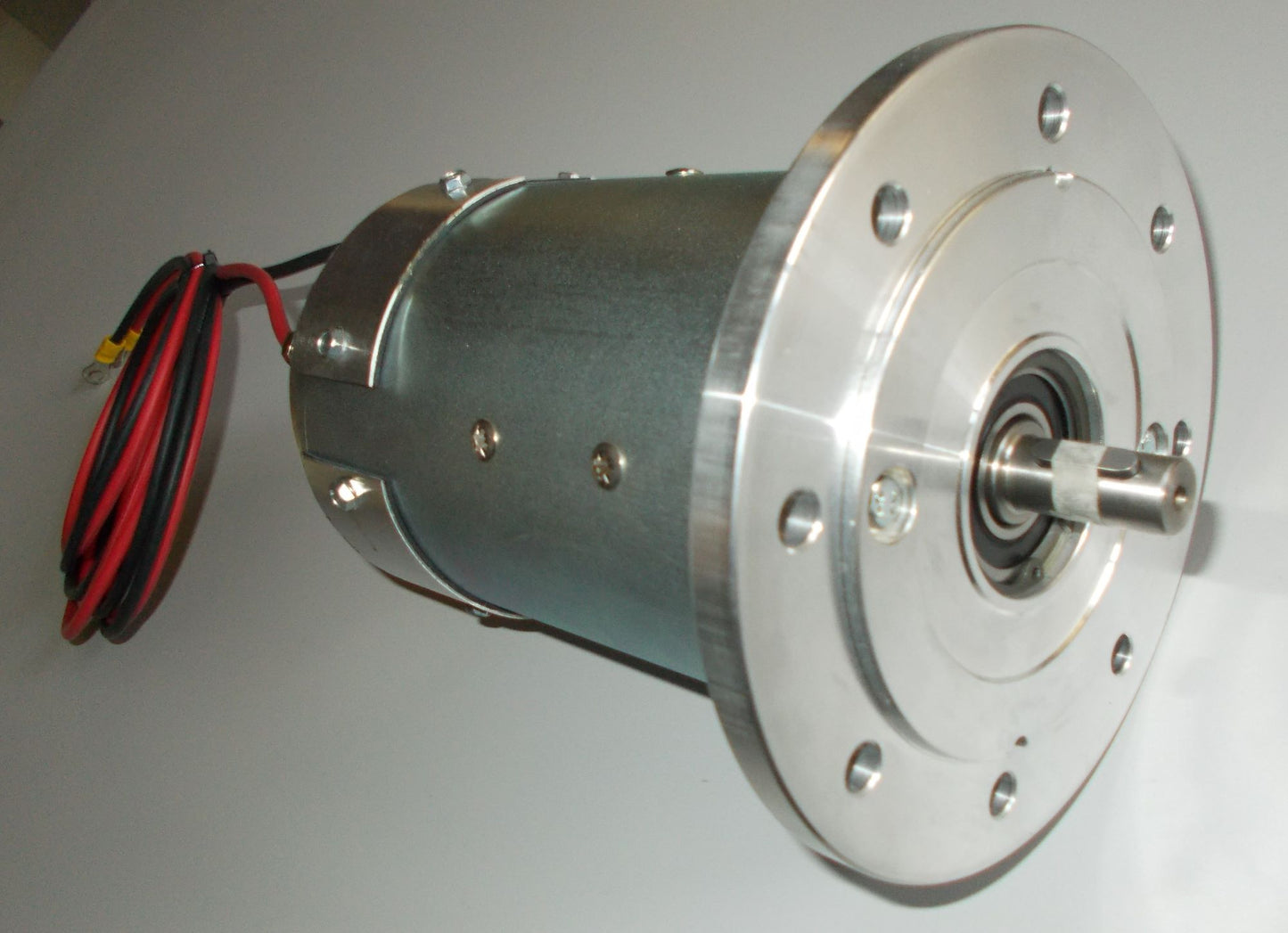

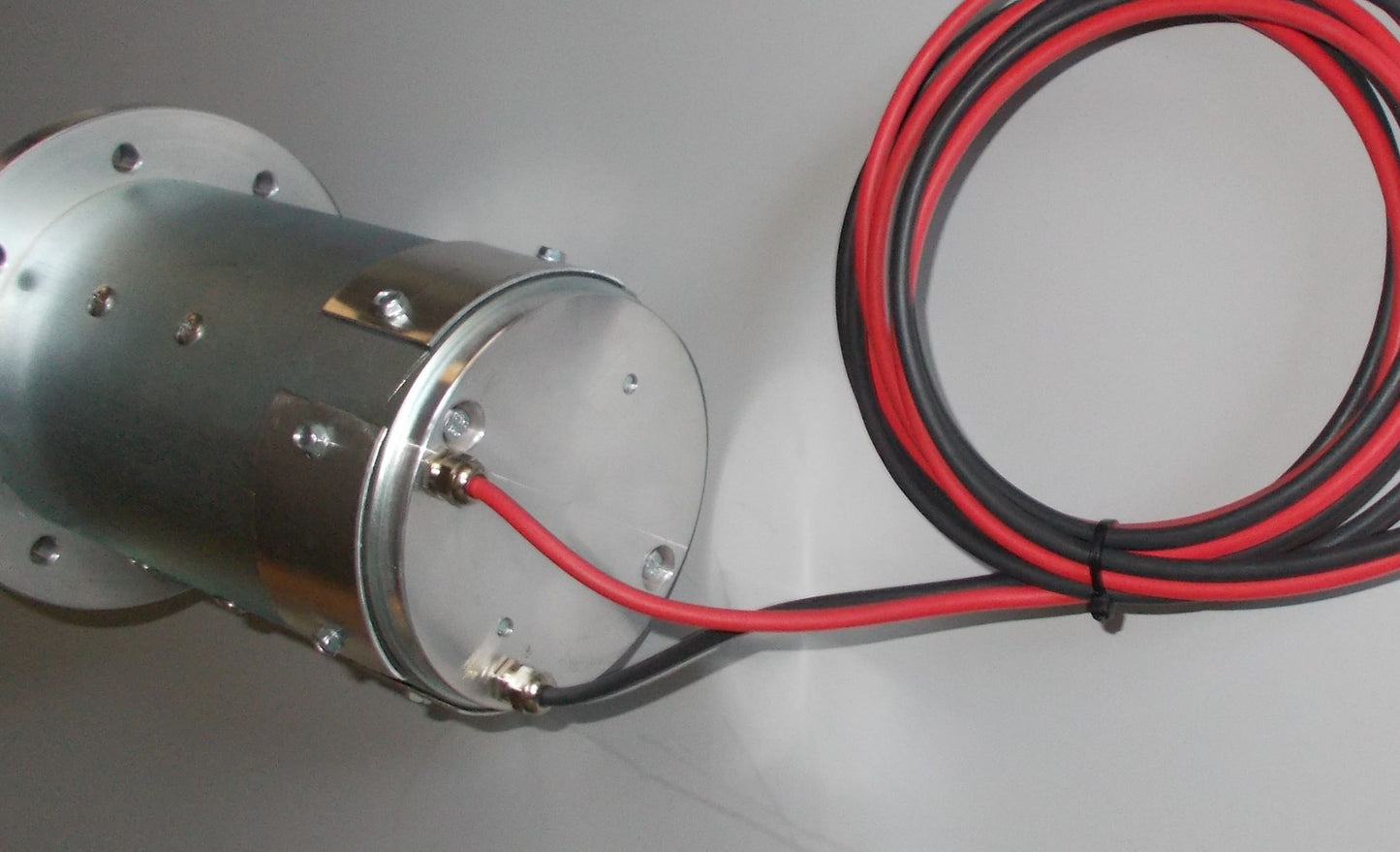

Quiet and Vibration-Free 370W Electric Motor (3000rpm)

Introducing our versatile motor with the following technical specifications:

• Voltage: 24 Vdc
• Power: 370 Watt
• Speed: 3000 rpm
• Building Form: IBM B5
• Length: +/- 200 mm (without shaft)
• Cross Section: +/- Ø 116mm
• Shaft: 14x30 mm (IEC71)
• Connection: Through cables (also possible with bolts or clampbox)
• Protection Class: IP55
• Article Number: 24A120PMS37-30

This motor type is also available with various technical specifications:

• Voltage: 12-24-48-80 VDC
• Power: 120 to 700 Watt
• Speed: from 750 to 3000 rpm
• Building Forms: IBM B34-B35-B14
• Protection Class: IP22-IP55

Interested? Contact us for pricing and lead time.
