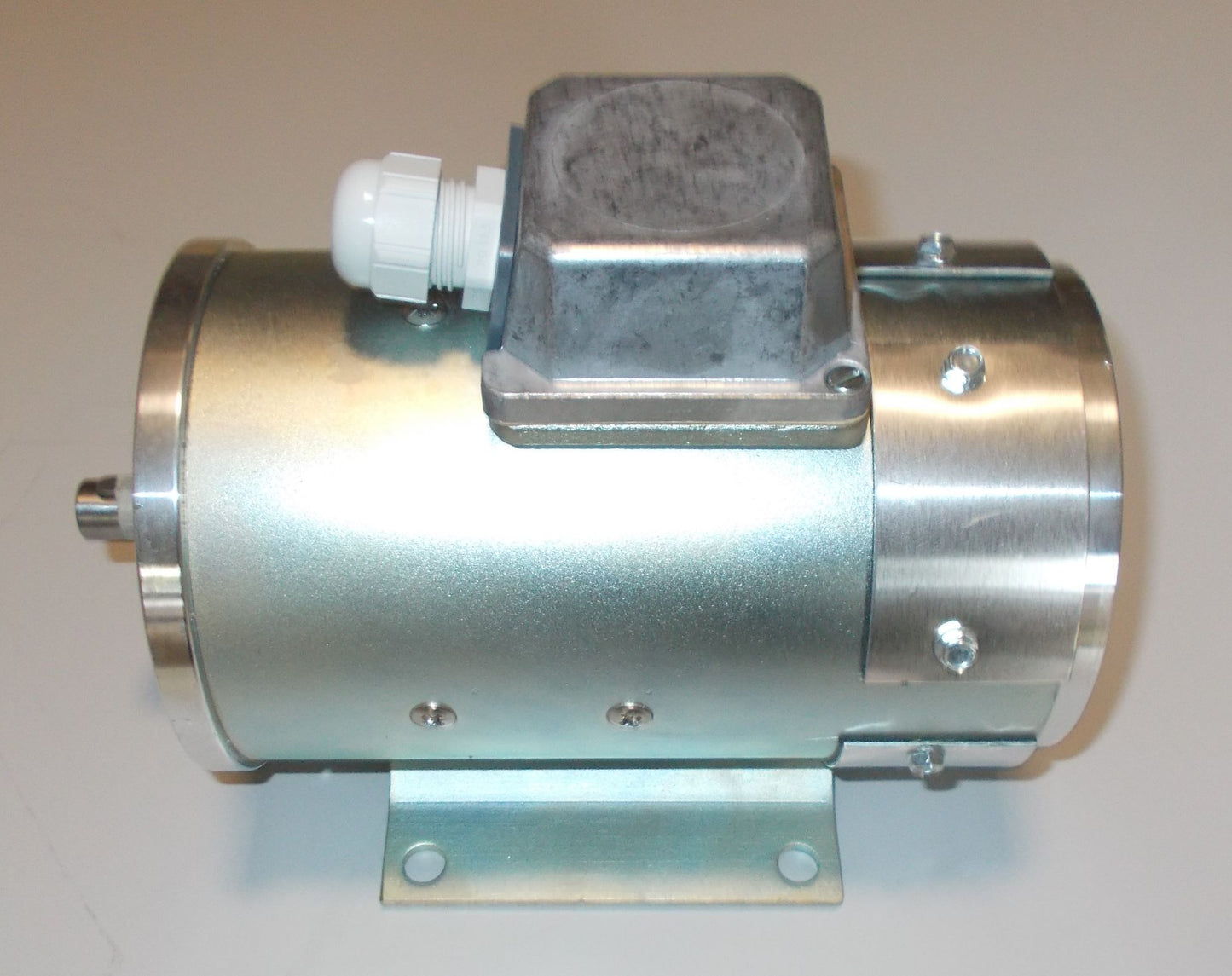

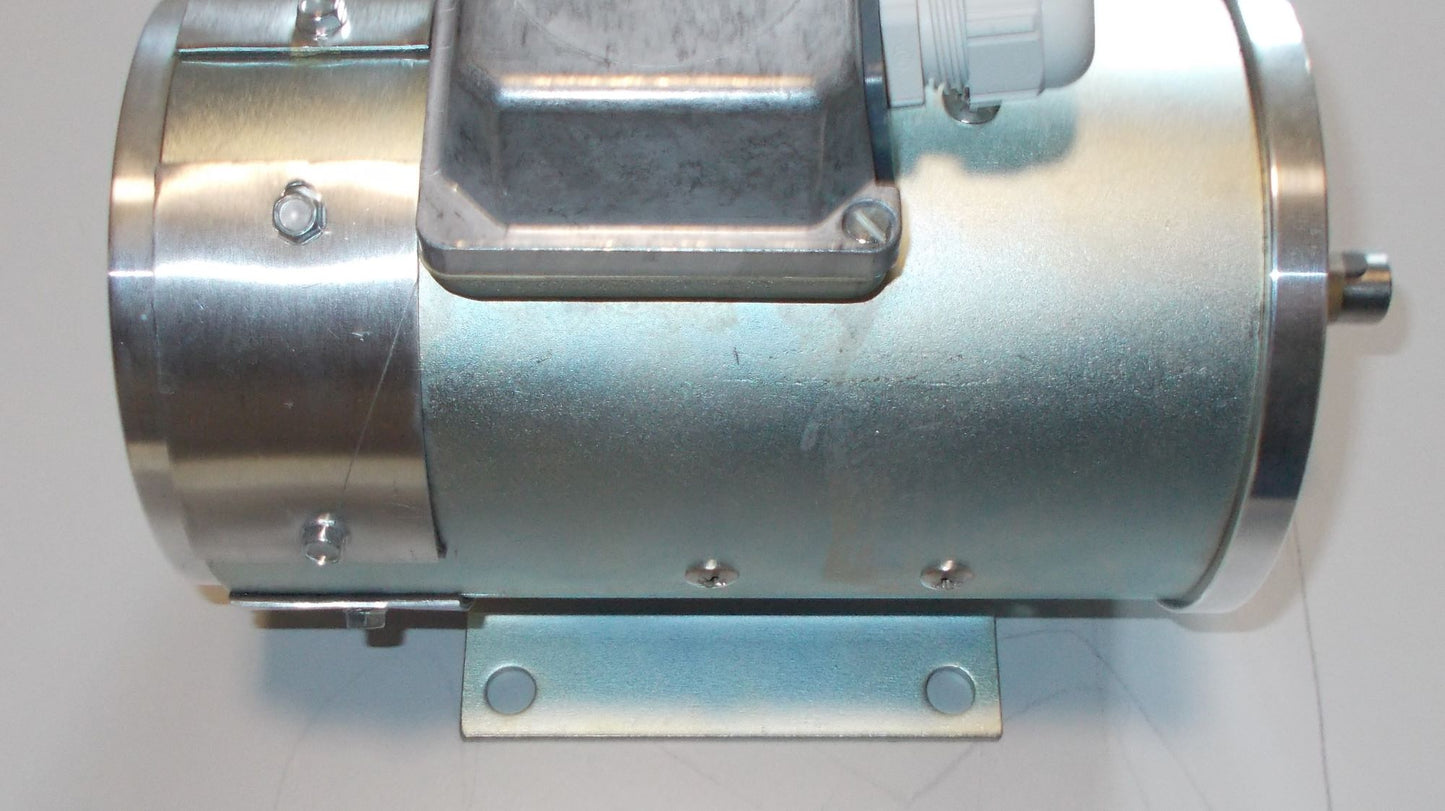

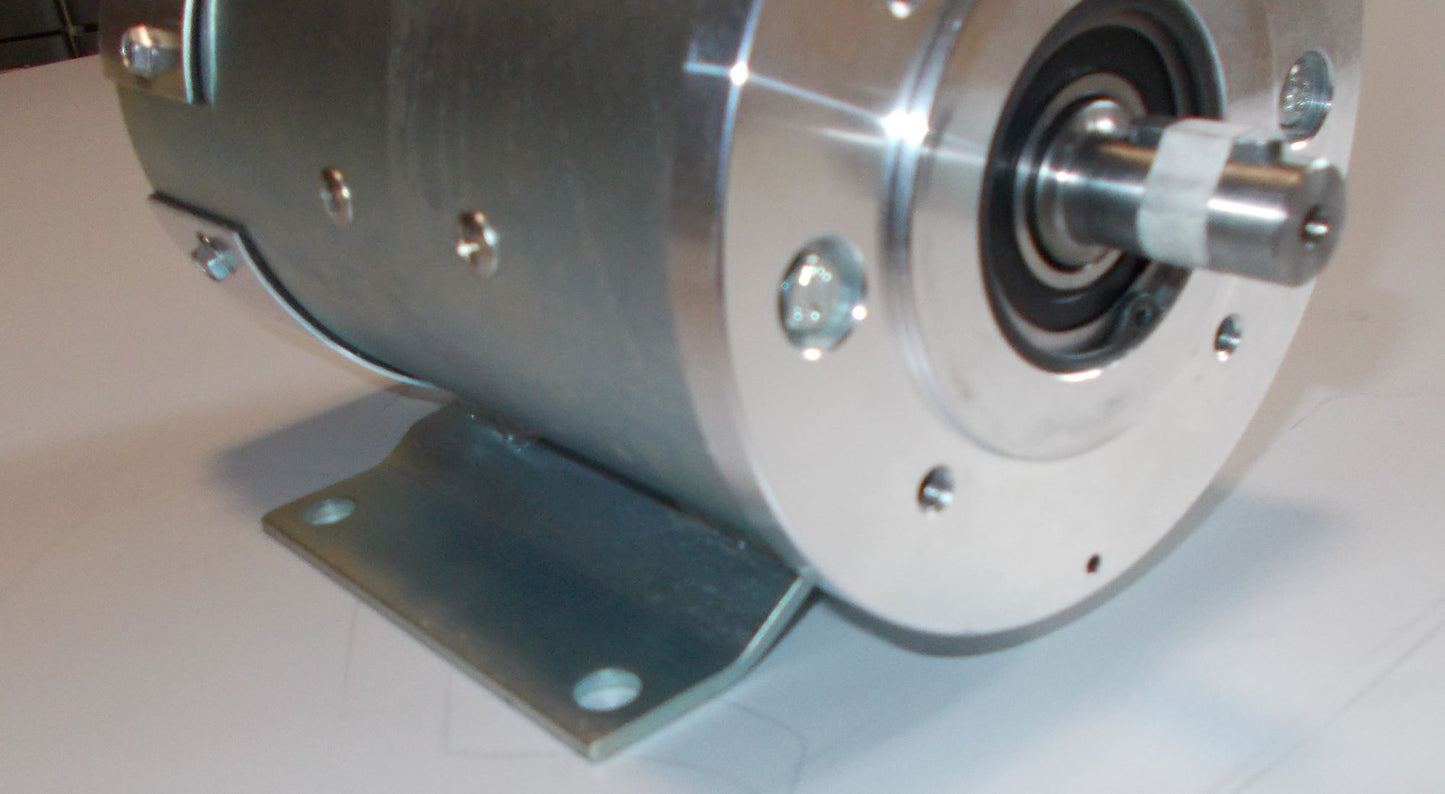

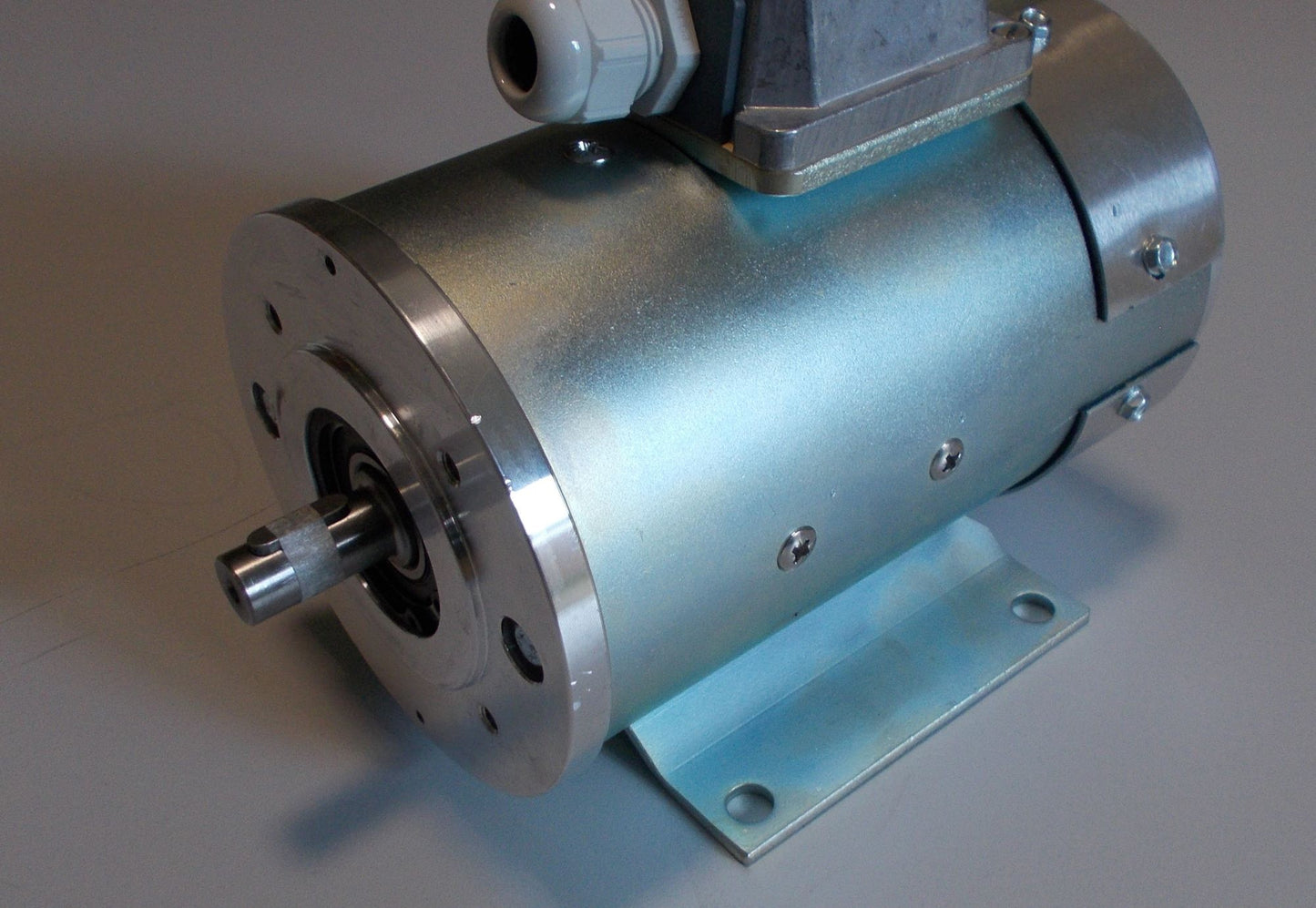

Quiet and Vibration-Free 370W Electric Motor (3000rpm)

Introducing our versatile motor with the following technical specifications:

• Voltage: 24 Vdc
• Power: 370 Watt
• Speed: 3000 rpm
• Building Form: IBM B34
• Length: +/- 190 mm (without shaft)
• Cross Section: +/- Ø 116mm
• Shaft: 29x11 mm
• Connection: Through clamping box
• Protection Class: IP42
• Article Number: 24A120PMST30-37

This motor type is also available with various technical specifications:

• Voltage: 12-24-48-80 VDC
• Power: 120 to 700 Watt
• Speed: from 750 to 3700 rpm
• Building Forms: IBM B5-B35-B14
• Protection Class: IP22-IP55

Price mentioned is the price for 1 motor.

Interested in more motors? Feel free to contact us for pricing and lead time.
