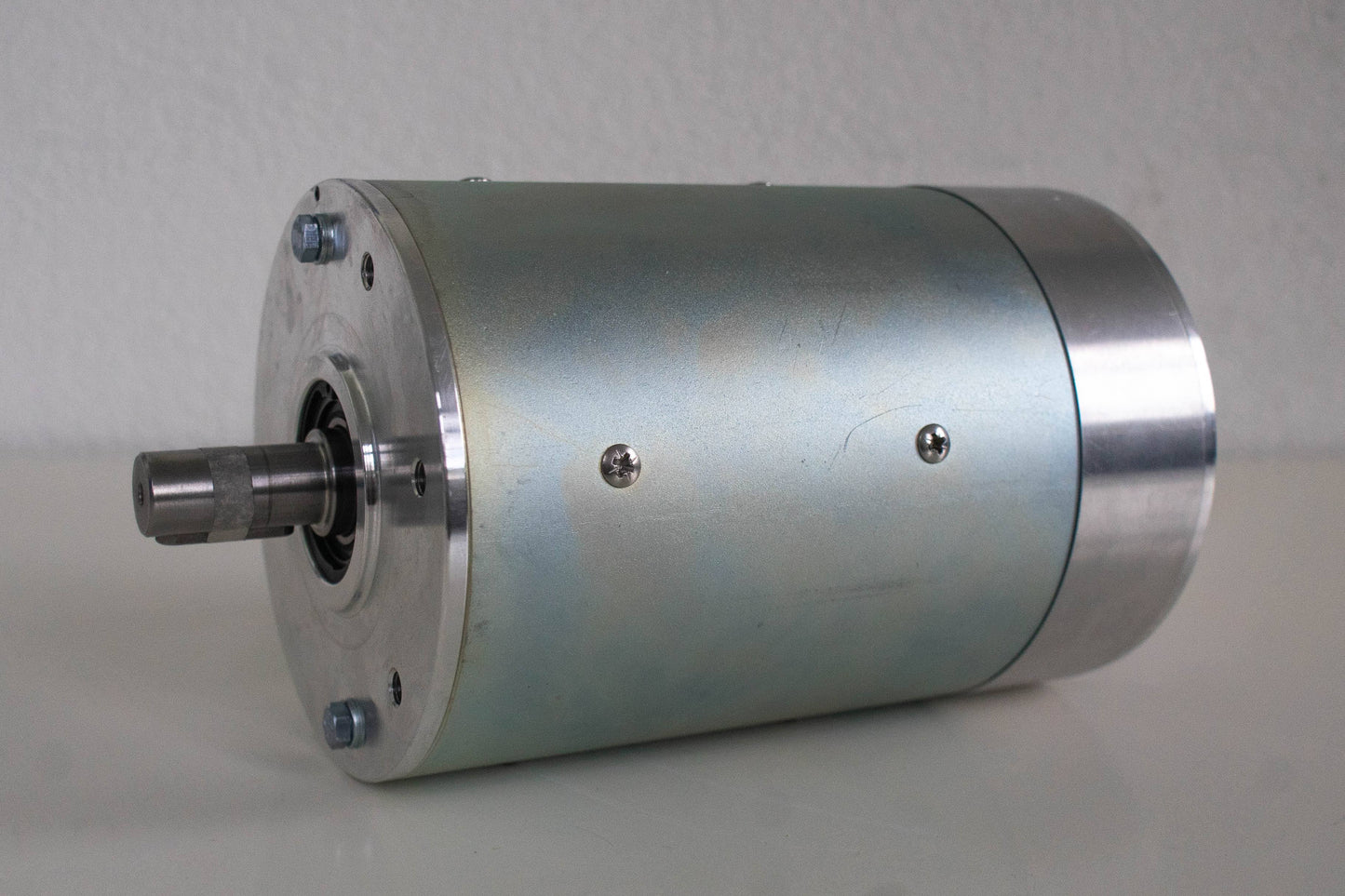

Quiet and Vibration-Free 300W Electric Motor (800rpm)

Introducing our versatile motor with the following technical specifications:

• Voltage: 48 Vdc
• Power: 300 Watt
• Speed: 800 rpm
• Building Form: IBM B14
• Length: +/-220 mm (without shaft)
• Shaft: 19X40 mm (IEC80)

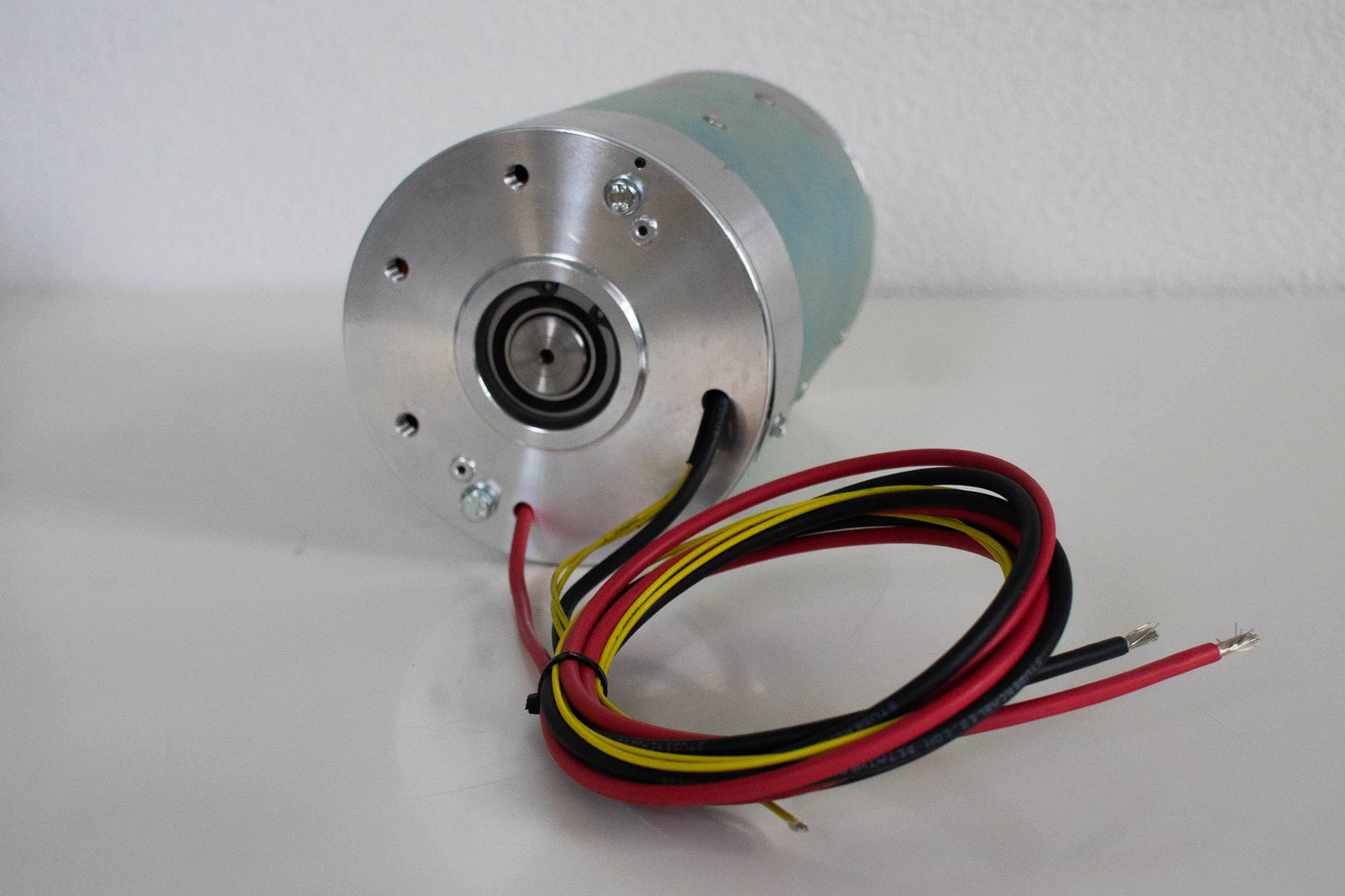

• Connection: Through cables (also available with M8 bolts or clampbox)
• Protection Class: IP30
• Article Number: 48A140PM30-80

This motor type is available with different technical specifications:

• Voltage: 12-24-110 VDC
• Building Forms: IBM B34-B14-B5-B35
• Protection Class: IP20-IP55

Interested? Reach out to us for pricing and lead time.
